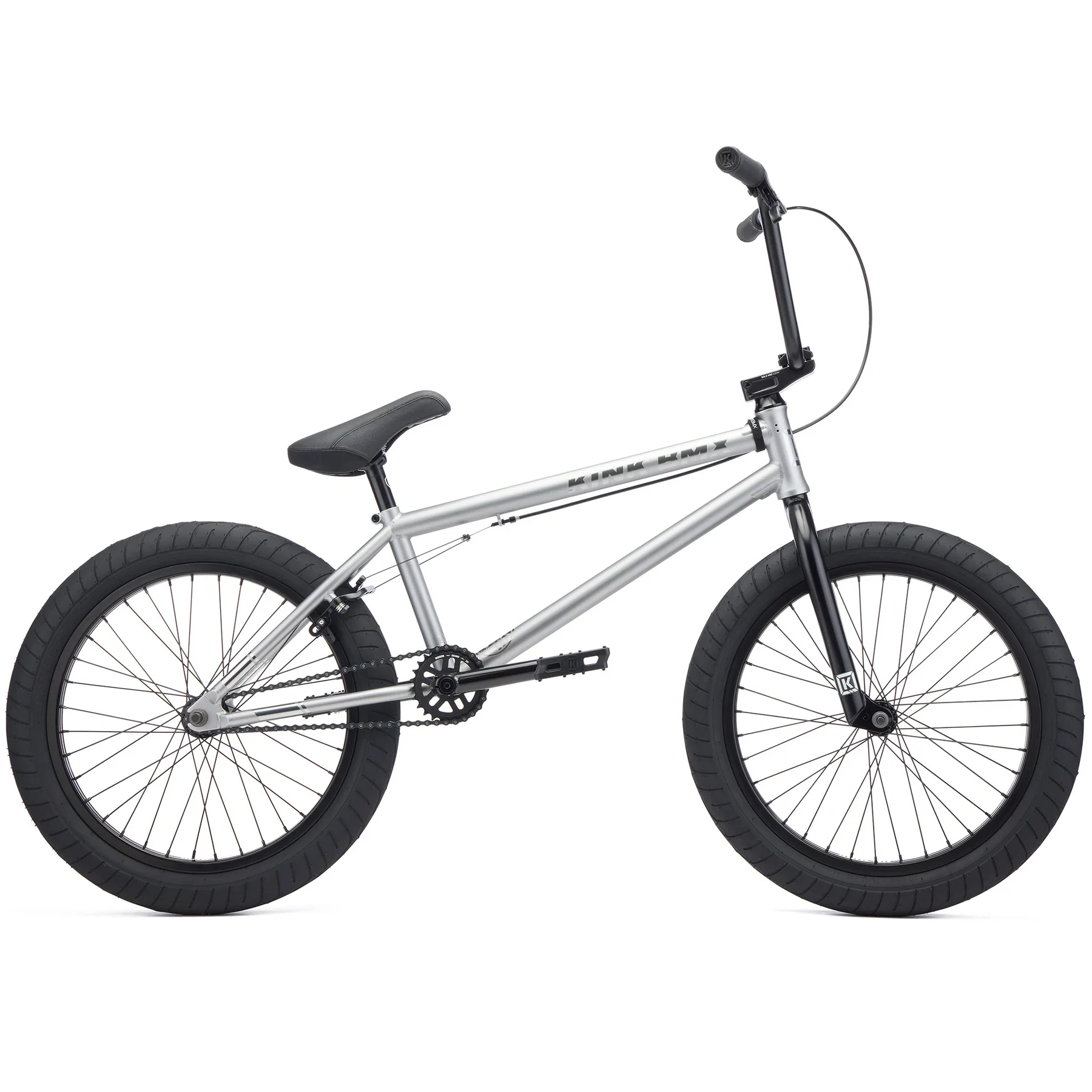

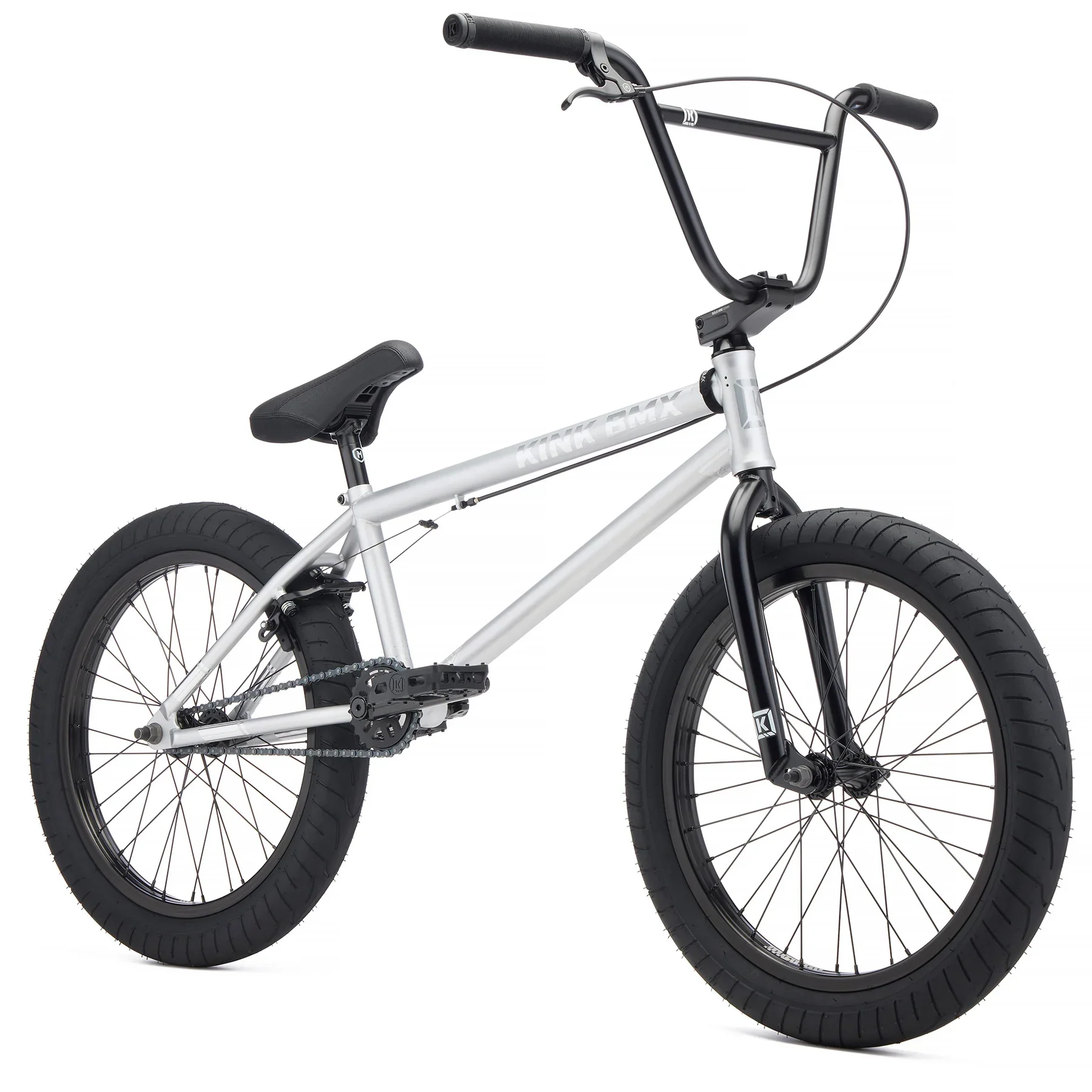

Kink Whip XL Bike 2027

The Kink Whip XL model is just like the regular whip but slightly oversized for taller riders. The Kink Whip models are where Chromoly start to enter the chat. A full chromoly setup keeps the weight down while adding a bunch of strength for riders who are looking to continuously push their limits. Our next favorite part of the Whip models are the introduction of sealed bearings throughout, meaning more time spent at the park and less time doing maintenance.

FRAME Kink Whip XL 100% 4130 Chromoly	PEDALS Kink Hemlock
FORK Kink Circuit 100% 4130 Chromoly Tapered Fork Legs	CHAIN Mission 410
BARS Kink T925 9.25" 100% 4130 Chromoly	SPROCKET Mission Charge 25T 6061 Aluminum
GRIPS Kink Form, Thrust Barends	SEAT Kink Duran Stealth
STEM Kink Bold HRD 50mm	SEAT POST Mission Stealth
HEADSET Mission Sealed Integrated (41.8 x 45)	SEAT CLAMP Integrated
BRAKE LEVER Mission Token	FRONT HUB Mission Foxtrot Sealed 3/8″ Axle
BRAKE CABLE Mission L4 Linear	REAR HUB Mission Engage Sealed Cassette 14mm
BRAKES Mission Cease V2	DRIVER 9T
CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline	RIMS Mission Mylar
BOTTOM BRACKET Sealed Mid 19mm	TIRES Kink Sever 2.4"
PEGS  N/A	WEIGHT  27lb 15oz

Toptube Length	21"
Chainstay Length	13.25"
Headtube Angle	75°
Seattube Angle	71°
Standover Height	9″
Bottom Bracket Height	11.6"
Fork Offset	30mm
