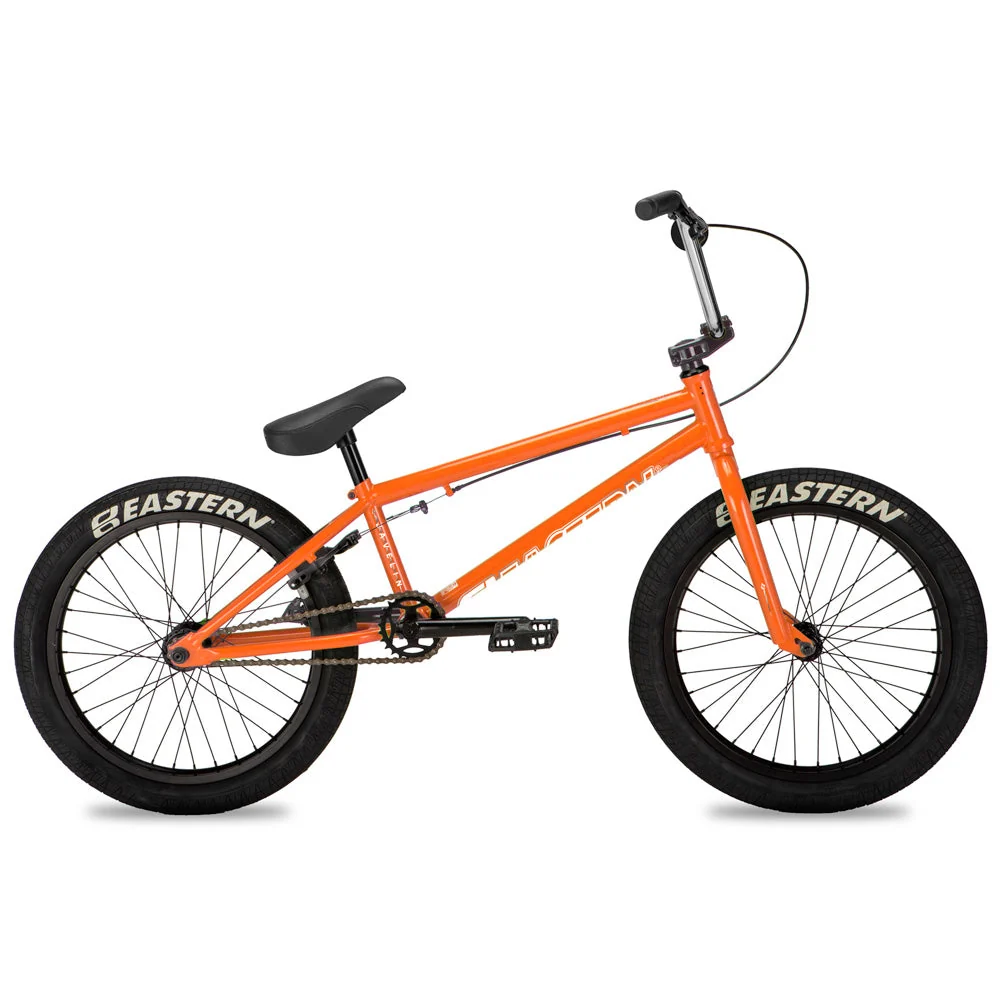

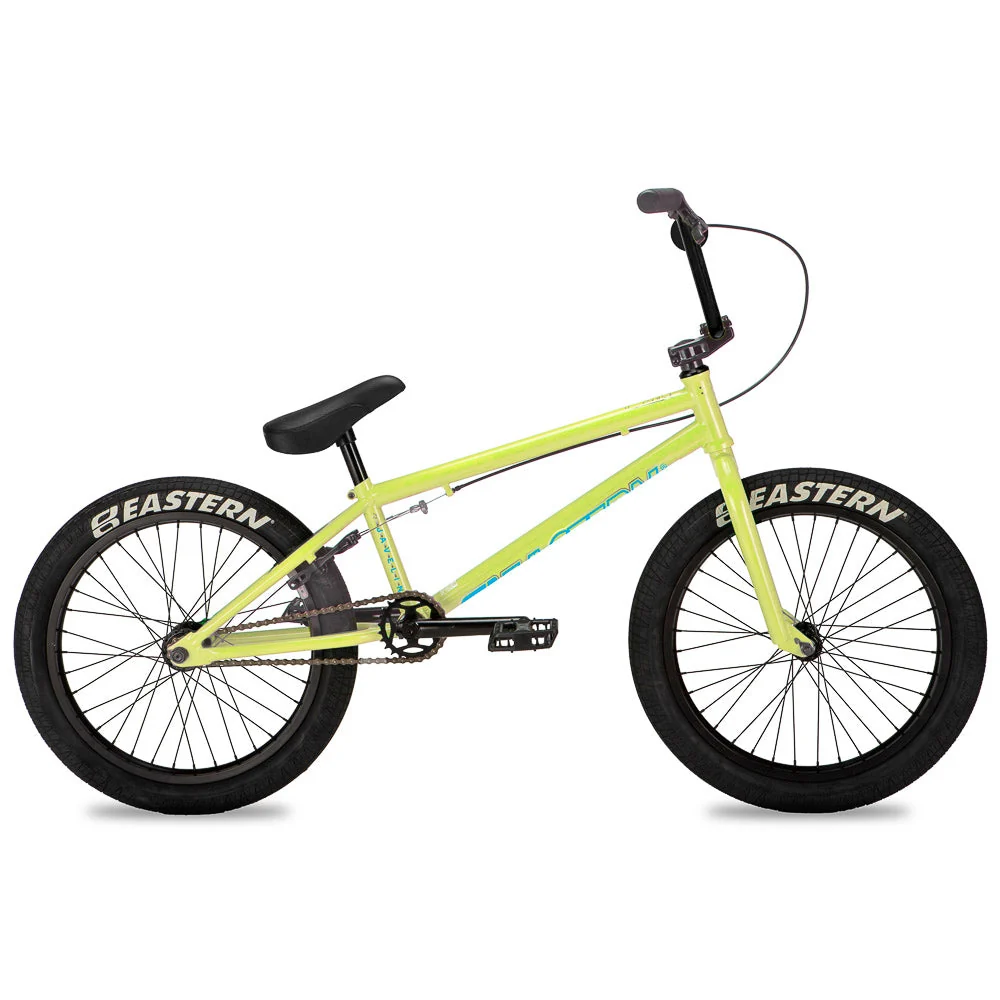

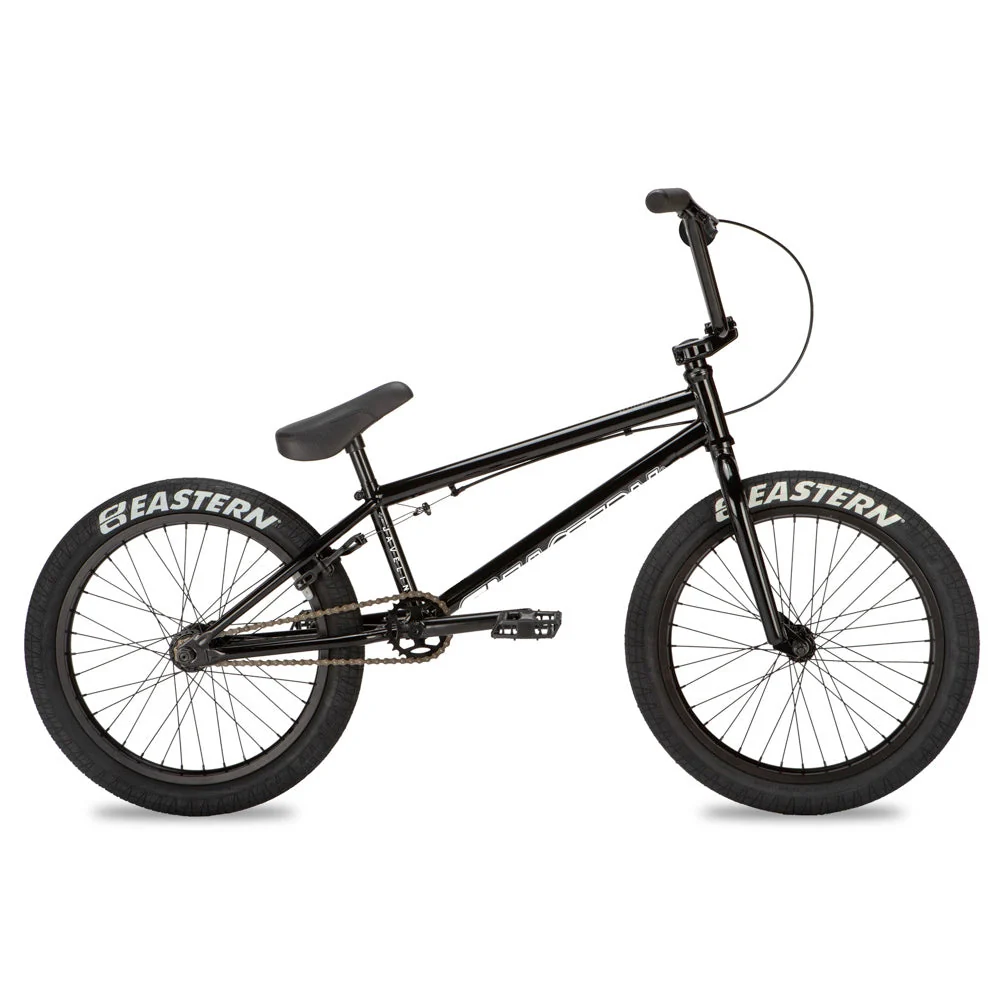

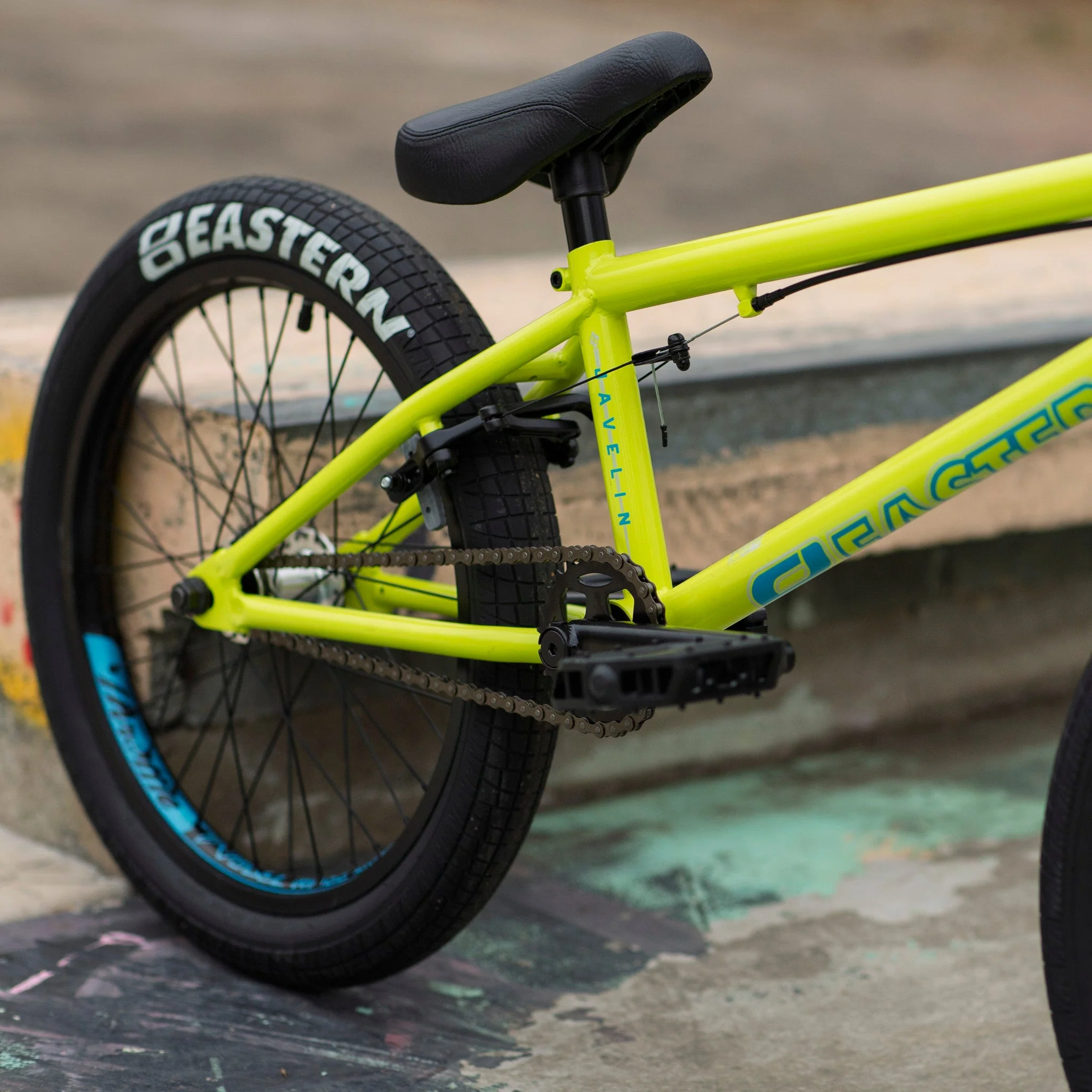

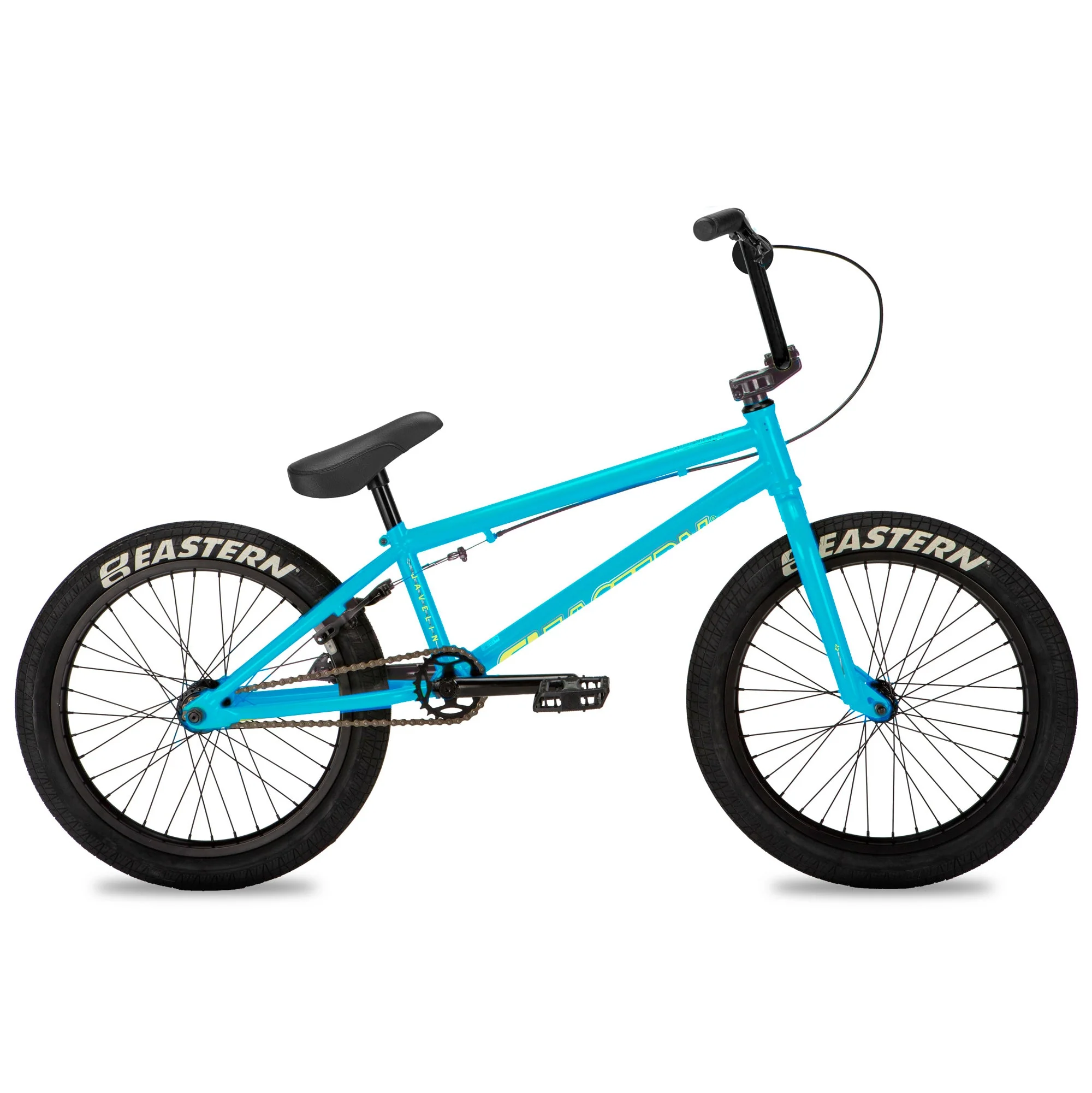

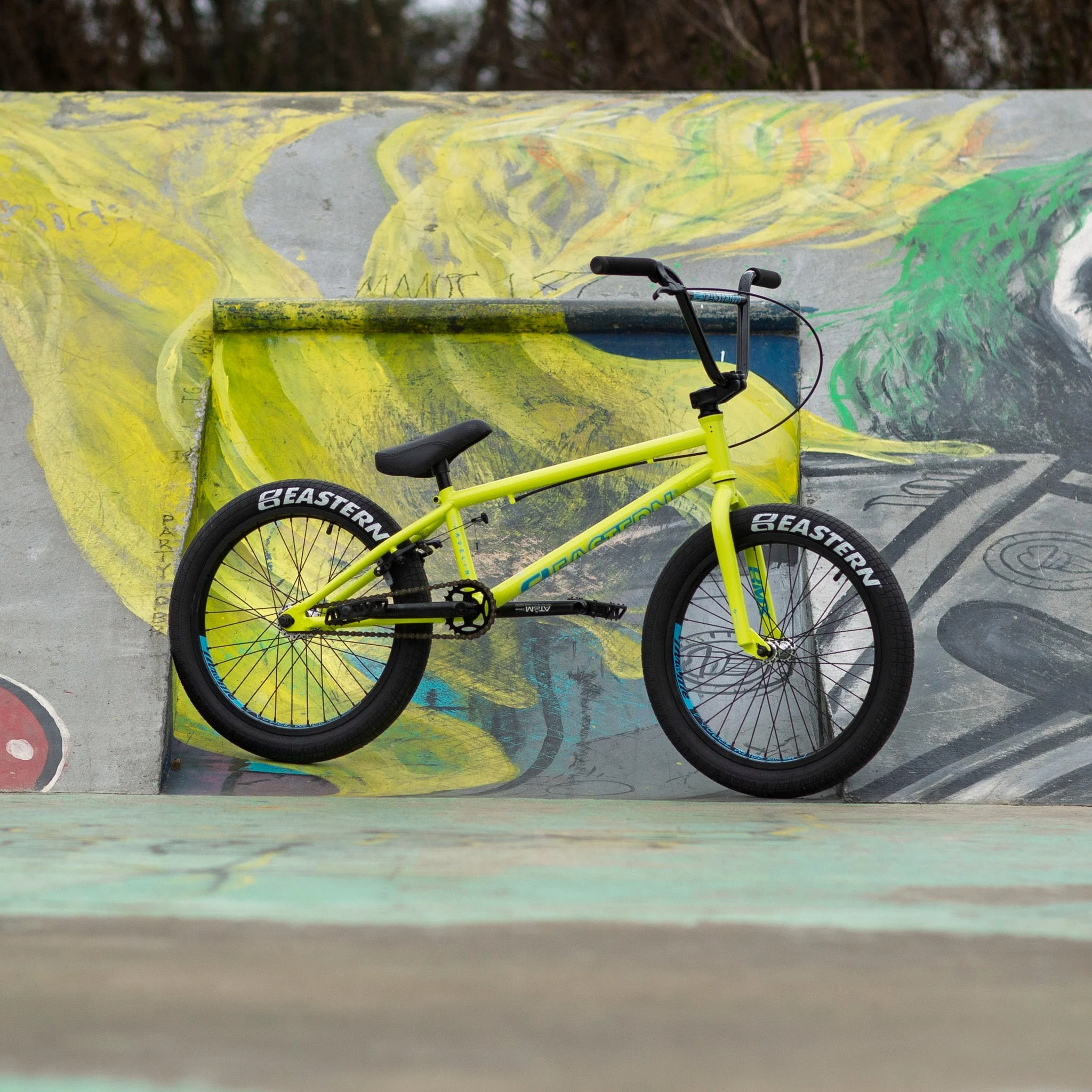

Eastern Bikes Javelin Bike

The Eastern Javelin is a beginners 20" BMX bike with a little extra. The Javelin features a rugged steel frame w/ chromo down tube, sealed front & rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, Eastern grips, pedals, and sprocket.

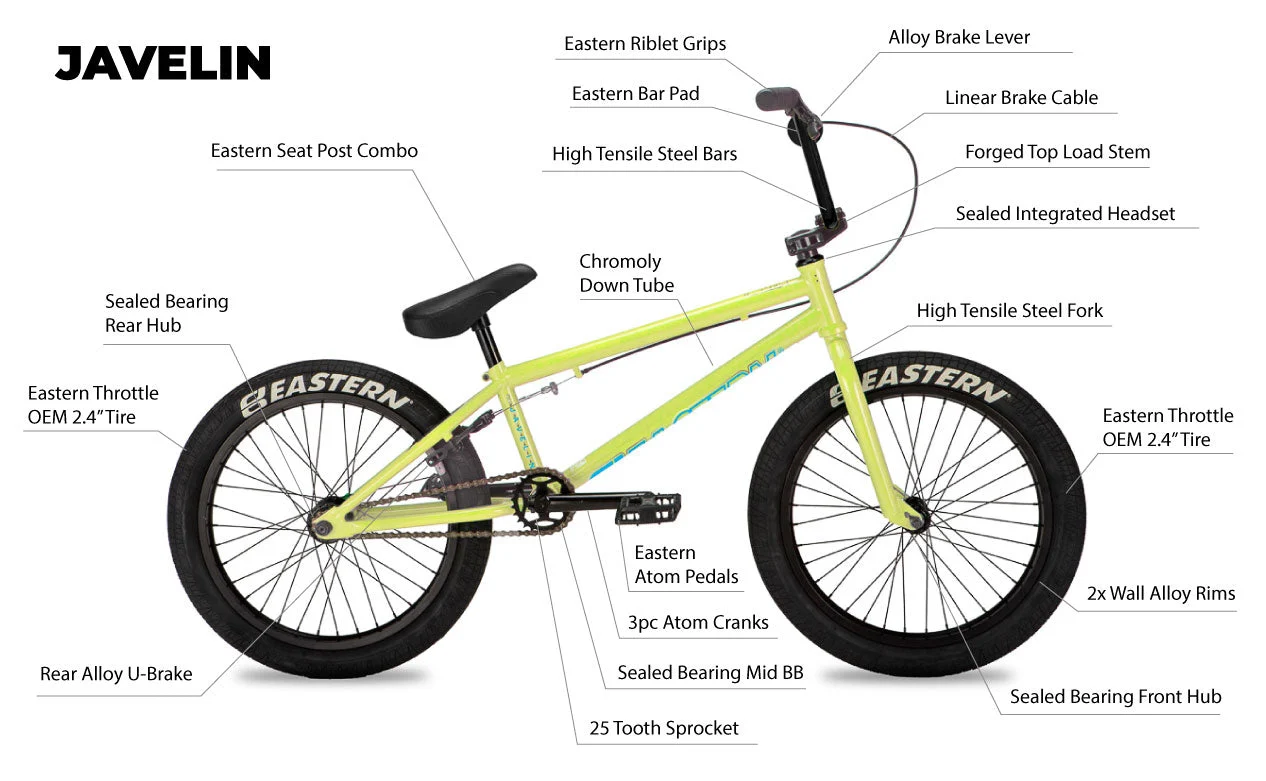

FEATURES

• Chromoly Down Tube & Fork Steerer Tube
• Sealed Front & Rear Hubs
• 3 Piece Tubular Chromoly Atom Cranks
• Mid BB
• Integrated Headset
• Eastern Riblet Grips
• Eastern Atom Pedals
• Eastern Sprocket
• Double Wall Rims

Weight: 25.7 Lbs | Top Tube: 20.5"

74.4º HT | 71º ST | 13.38" CS

SPECS

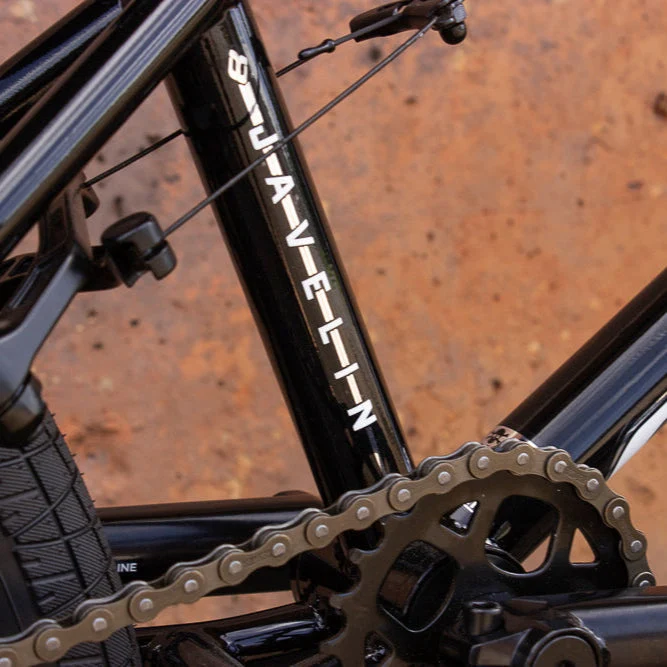

FRAME	Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset, Top Tube Size: 20.5″, Chainstay Length: 13.38″
BARS	Hi-Ten 8.5" Upsweep/Backsweep 12⁰/1⁰
FORK	Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts, Fork Rake: 28mm
HEADSET	Integrated 45°X45° Sealed Cartridge Bearing

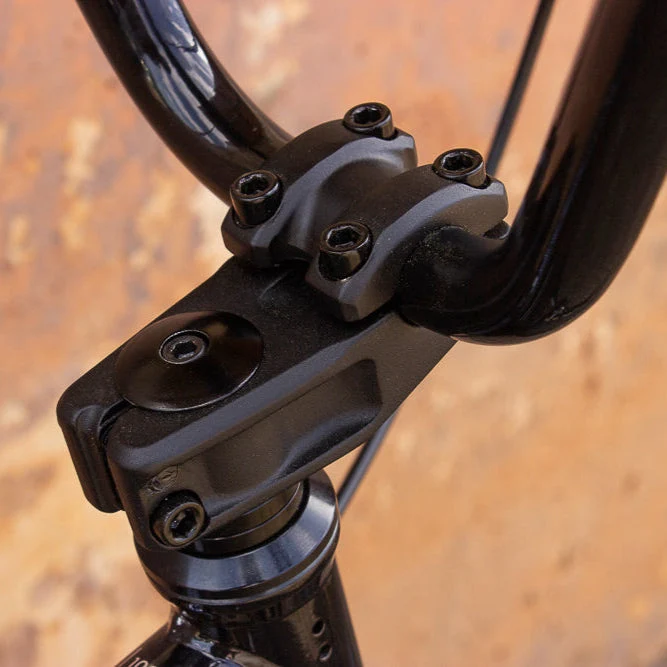

STEM	Forged Alloy Top Load Stem
GRIP	Eastern Riblet Grips

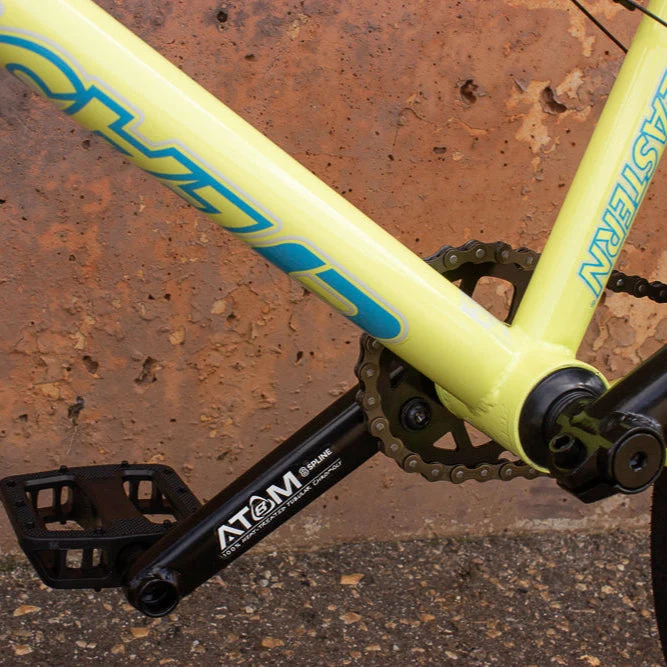

CRANK	3-Piece, Tubular Heat-Treated Chromoly, 170mm
BOTTOM BRACKET	Sealed Bearing Mid
CHAINWHEEL	Eastern Phorcys, Cold Hard Steel, 25T
CHAIN	KMC Z510 1/2 x 1/8
PEDAL	Eastern Atom Plastic Pedal with 9/16" Axle
REAR BRAKE	U-Brake, Forged Alloy, Wide Body, Grey Brake Pads
REAR LEVER	Forged Alloy Lever
FRONT HUB	Sealed Bearings, Forged Alloy Shell, 36 Spokes, 3/8" Chromoly Axle

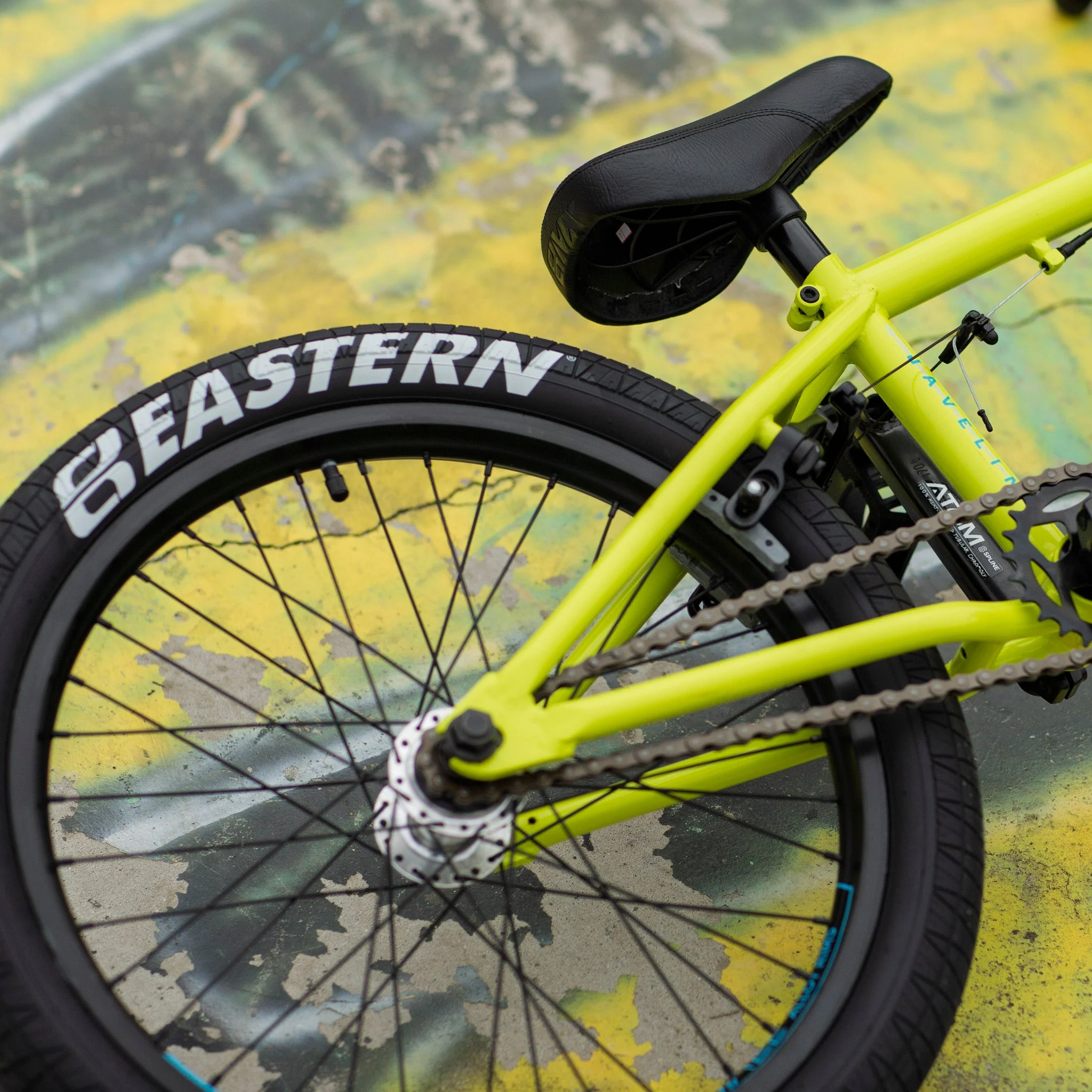

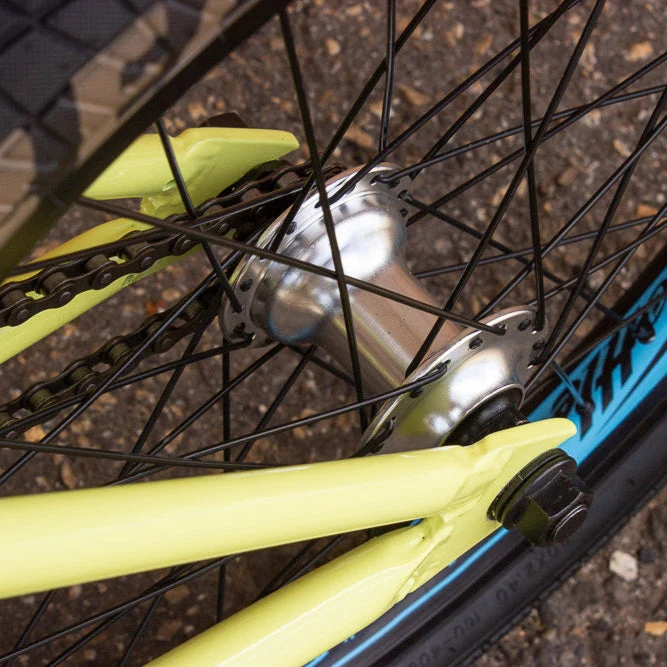

REAR HUB	Sealed Bearings, Forged Alloy Shell, 36 Spokes, 14mm Chromoly Axle
RIMS	Alloy, Double Wall, 36 Spokes
TIRES	20 x 2.3
